100
ER3R 075 030 750 x 300 860 x 500 x 80
ER3R 152 030 1520 x 300 1630 x 500 x 80
ER3R 229 030 2290 x 300 2400 x 500 x 80
ER3R 045 045 450 x 450 560 x 650 x 80
ER3R 060 045 600 x 450 710 x 650 x 80
ER3R 090 045 900 x 450 1010 x 650 x 80
ER3R 092 045 920 x 450 1030 x 650 x 80
ER3R 107 045 1070 x 450 1180 x 650 x 80
ER3R 122 045 1220 x 450 1330 x 650 x 80
ER3R 139 045 1390 x 450 1500 x 650 x 80
ER3R 152 045 1520 x 450 1630 x 650 x 80
ER3R 154 045 1540 x 450 1650 x 650 x 80
ER3R 182 045 1820 x 450 1930 x 650 x 80
ER3R 184 045 1840 x 450 1950 x 650 x 80
ER3R 214 045 2140 x 450 2250 x 650 x 80
ER3R 244 045 2440 x 450 2550 x 650 x 80
ER3R 274 045 2740 x 450 2850 x 650 x 80
ER3R 060 060 600 x 600 710 x 800 x 80
ER3R 075 060 750 x 600 860 x 800 x 80
ER3R 090 060 900 x 600 1010 x 800 x 80
ER3R 122 060 1220 x 600 1330 x 800 x 80
ER3R 137 060 1370 x 600 1480 x 800 x 80
ER3R 152 060 1520 x 600 1630 x 800 x 80
ER3R 167 060 1670 x 600 1780 x 800 x 80
ER3R 182 060 1820 x 600 1930 x 800 x 80
ER3R 184 060 1840 x 600 1950 x 800 x 80
ER3R 199 060 1990 x 600 2100 x 800 x 80
ER3R 214 060 2140 x 600 2250 x 800 x 80
ER3R 229 060 2290 x 600 2400 x 800 x 80
ER3R 244 060 2440 x 600 2550 x 800 x 80
ER3R 259 060 2590 x 600 2700 x 800 x 80
ER3R 274 060 2740 x 600 2850 x 800 x 80
ER3R 060 075 600 x 750 710 x 950 x 80
ER3R 075 075 750 x 750 860 x 950 x 80
ER3R 122 075 1220 x 750 1330 x 950 x 80
ER3R 137 075 1370 x 750 1480 x 950 x 80
ER3R 152 075 1520 x 750 1630 x 950 x 80
ER3R 184 075 1840 x 750 1950 x 950 x 80
ER3R 199 075 1990 x 750 2100 x 950 x 80
ER3R 214 075 2140 x 750 2250 x 950 x 80
ER3R 229 075 2290 x 750 2400 x 950 x 80
ER3R 060 090 600 x 900 710 x 1100 x 80
ER3R 075 090 750 x 900 860 x 1100 x 80
ER3R 122 090 1220 x 900 1330 x 1100 x 80
ER3R 137 090 1370 x 900 1480 x 1100 x 80
ER3R 152 090 1520 x 900 1630 x 1100 x 80
ER3R 184 090 1840 x 900 1950 x 1100 x 80
ER3R 199 090 1990 x 900 2100 x 1100 x 80
ER3R 214 090 2140 x 900 2250 x 1100 x 80
ER3R 229 090 2290 x 900 2400 x 1100 x 80
ER3R 050 100 500 x 1000 680 x 1200 x 80
ER3R 102 100 1020 x 1000 1200 x 1200 x 80
ER2R 154 100 1540 x 1000 1720 x 1200 x 80
ER2R 206 100 2060 x 1000 2240 x 1200 x 80
ER3R 075 120 750 x 1200 860 x 1400 x 80
ER3R 152 120 1520 x 1200 1630 x 1400 x 80
ER3R 229 120 2290 x 1200 2400 x 1400 x 80
ER3P 060 060 600 x 600 710 x 800 x 80
ER3P 122 060 1220 x 600 1330 x 800 x 80
ER2P 184 060 1840 x 600 1950 x 800 x 80
ER3T 060 060 600 x 600 710 x 800 x 80
ER3T 122 060 1220 x 600 1330 x 800 x 80
ER2T 184 060 1840 x 600 1950 x 800 x 80
ER3T 090 090 900 x 900 1010 x 1100 x 80
ER3T 182 090 1820 x 900 1930 x 1100 x 80
ER3T 274 090 2740 x 900 2850 x 1100 x 80
Ref. Dimensioni - Dimensions (mm) n° coperchi - n° of covers
apertura libera - clear opeing ingombro totale - larghezza x lunghezza x altezza
a x b (mm) overall flange - lenght x width x height (mm)

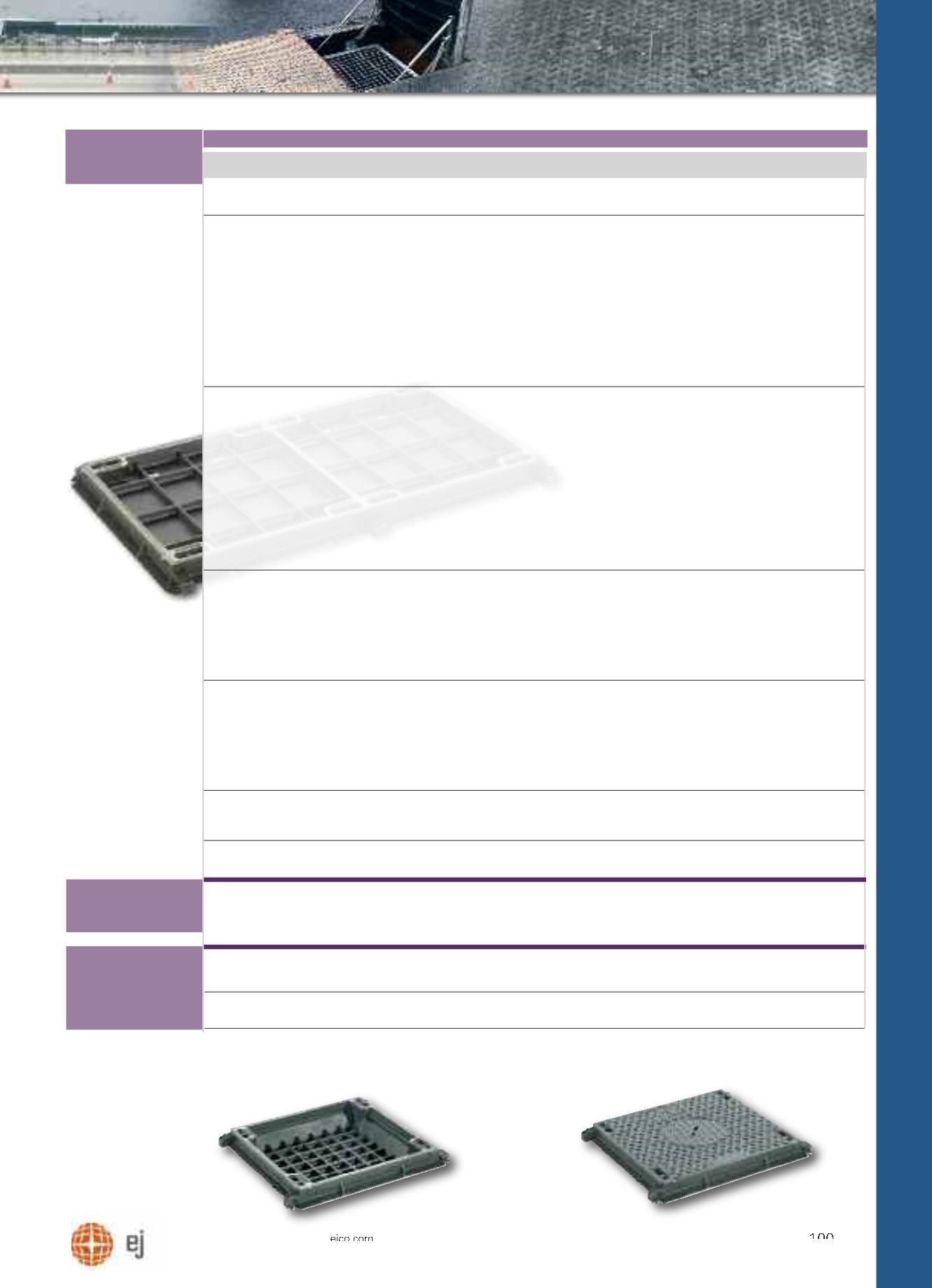

Coperchi a riempimento
calcestruzzo 250 kN
Recessed covers for
concrete infill 250 kN
Coperchi riempimento blocchi
pavé altezza 100mm B 125
Recessed covers for paving infill
height 100 mm 125 kN
Coperchi con superficie anti
sdrucciolo con botola
d’ispezione Ø 250 mm 250 kN
Solid top covers with
removable plug Ø 250 mm
250 kN
Coperchi con superficie anti sdrucciolo con botola
Solid top covers with removable plug
Coperchi riempimento blocchi pavé
Recessed covers for paving infill
In opzione
chiusura standard: VCHC
chiusura speciale
di sicurezza: VOTC
OOption:
standard locking: VCHC
security locking: VOTC
Ermatic
®
